GIETZ FSA-720
Here are the technical specifications for the GIETZ FSA-720 hot foil stamping and embossing press.
While there can be minor variations depending on specific configurations ordered in 1987,
the standard operational metrics for the FSA-720 series from that era are as follows:
General Specifications
| Feature | Specification |
| Maximum Sheet Size | 720 x 520 mm |
| Minimum Sheet Size | 297 x 210 mm |
| Maximum Operating Speed | 5,000 sheets per hour (sph) |
| Maximum Stamping Pressure | 120 tonnes |
| Maximum Paper Thickness | Approx. 0.5 mm |
Feeder & Delivery Systems
-
Feeder Type: Non-stop stream feeder
-
Maximum Feeder Pile Height: 950 mm
-
Maximum Delivery Pile Height: 700 mm
-
Double Sheet Detection: Equipped as standard
Foil & Heating System
-
Foil Pulls: 3 x longitudinal foil unwinding devices
-

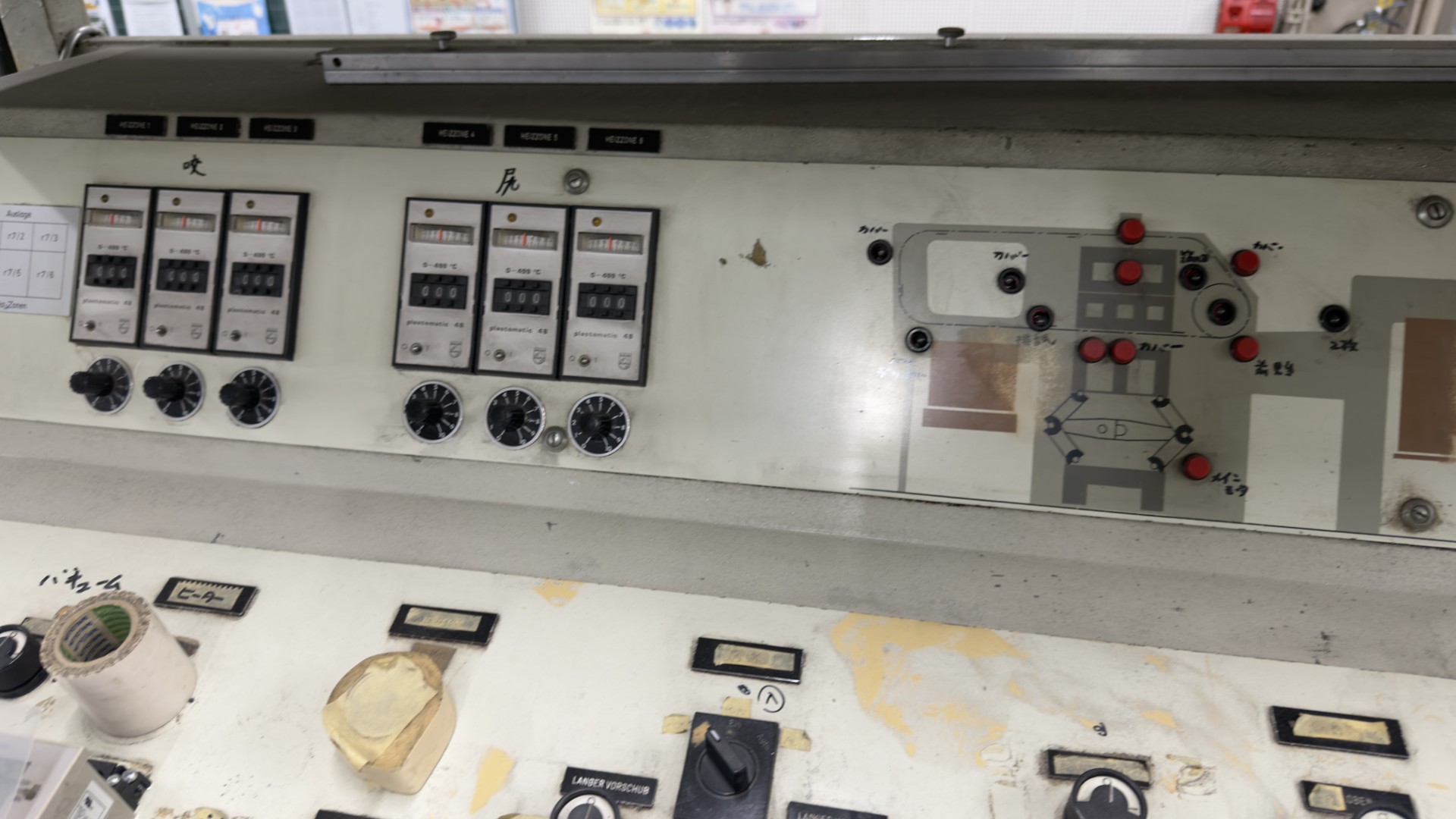

Heating Zones: 3 independently controlled heating zones
-
Programmable Foil Advance: Yes
Physical Dimensions
-
Approximate Footprint (L x W x H): 4.3 m x 3.6 m x 1.9 m
-
Total Power Requirement: ~34 kW
-
Total Machine Weight: ~7.0 tons (approx. 7,000 kg)
