HINIX SHS-V SHEETER
| 1-3. Basic specifications (SHS 75C-V) | |
| Main unit | |
| 1. Paper width | 625~1040mm |
| 2. Cut-off length | 440~660mm |
| (can be changed in 1mm increments) | |
| 3. Cutting accuracy | ±0.3mm |
| 4. Paper basis weight | 45~200g/m |
| 5. Operating speed | MAX300r.p.m |
| 6. Main pile stacking height | MAX1200mm |
| Sheeter-specific pallet | |
| for stacking (3 included) | |
| 7. Compressed air consumption | Pallets are stacked in two layers |
| with the customer's pallet on top. | |
| 8. Required power | 600NL/min 0. 5Mp a |
| 9. Power source | 30KVA |
| (300r. p. m) | |
| AC 3-phase 200/220V, 50/60HZ, | |
| D-type grounding, 50KVA (installed capacity) | |
| [Connected to separate main control panel, | |
| customer installation] | |
| 10. External dimensions Main body | 2580mmWx2322mmL×2301mmH |
| Control panel | 1500mmW×600mmL×1800mmH |
| 11. Main unit weight | 6500kg |
| 12. Paint color | Standard white |

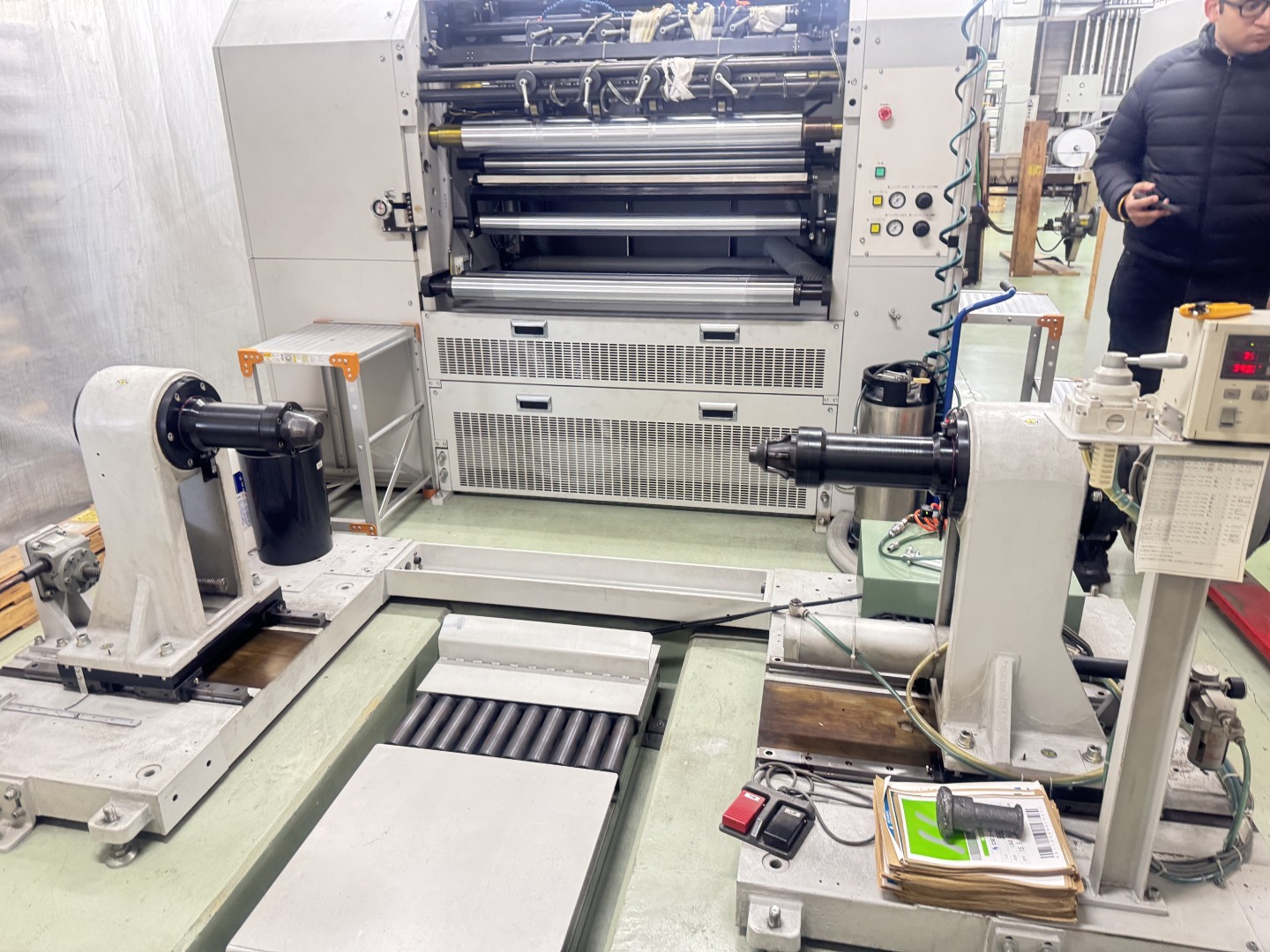

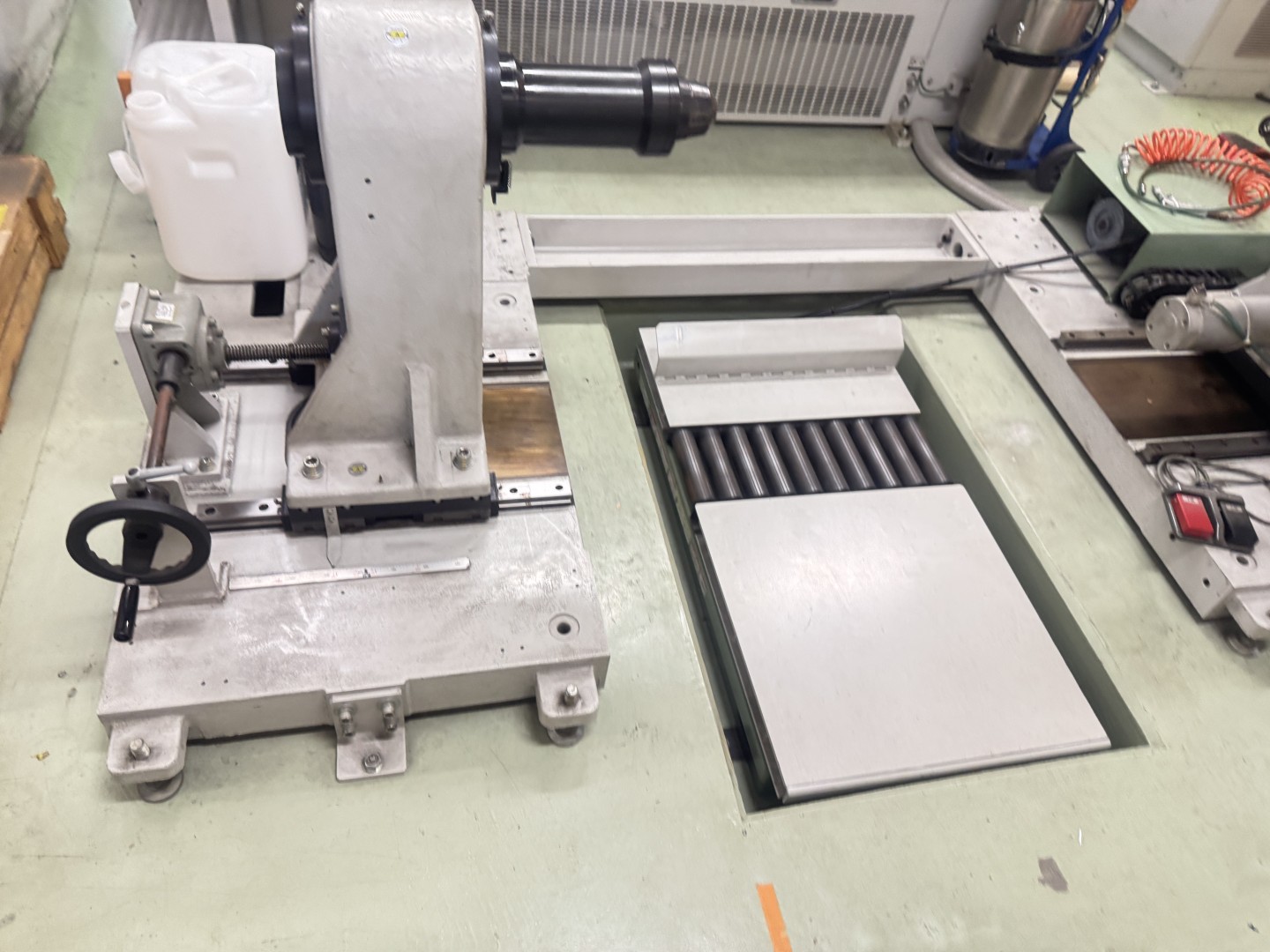

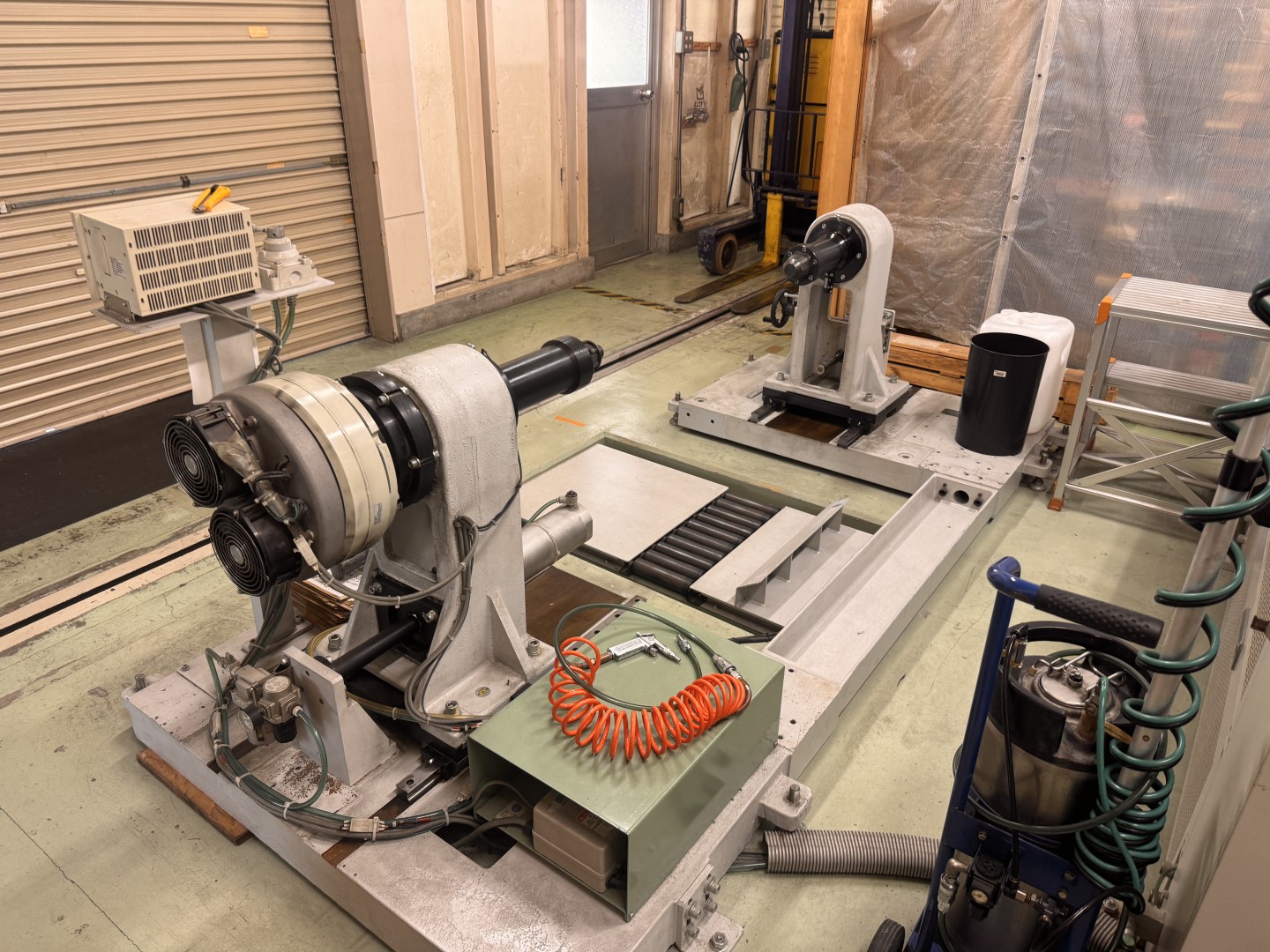

| Reel stand | |
| 1. Model | : SHSC-R |
| 2. Paper width | : 625mm~1040mm |
| 3. Paper diameter | : 110mm~1000mm |
| 4. Compressed air consumption | : 100NL/min (included in main unit) |
| 5. Required power | : 7KVA (included in main unit) |
| 6. Power source | : AC 3-phase 200/220V, 50/60Hz |
| (included in main unit) | |
| 7. Finishing color | : Standard white |
| Other | Shaftless chucking system |
| Powder brake control | |
| · | Paper width setting is done by |
| one-sided manual handle system | |
