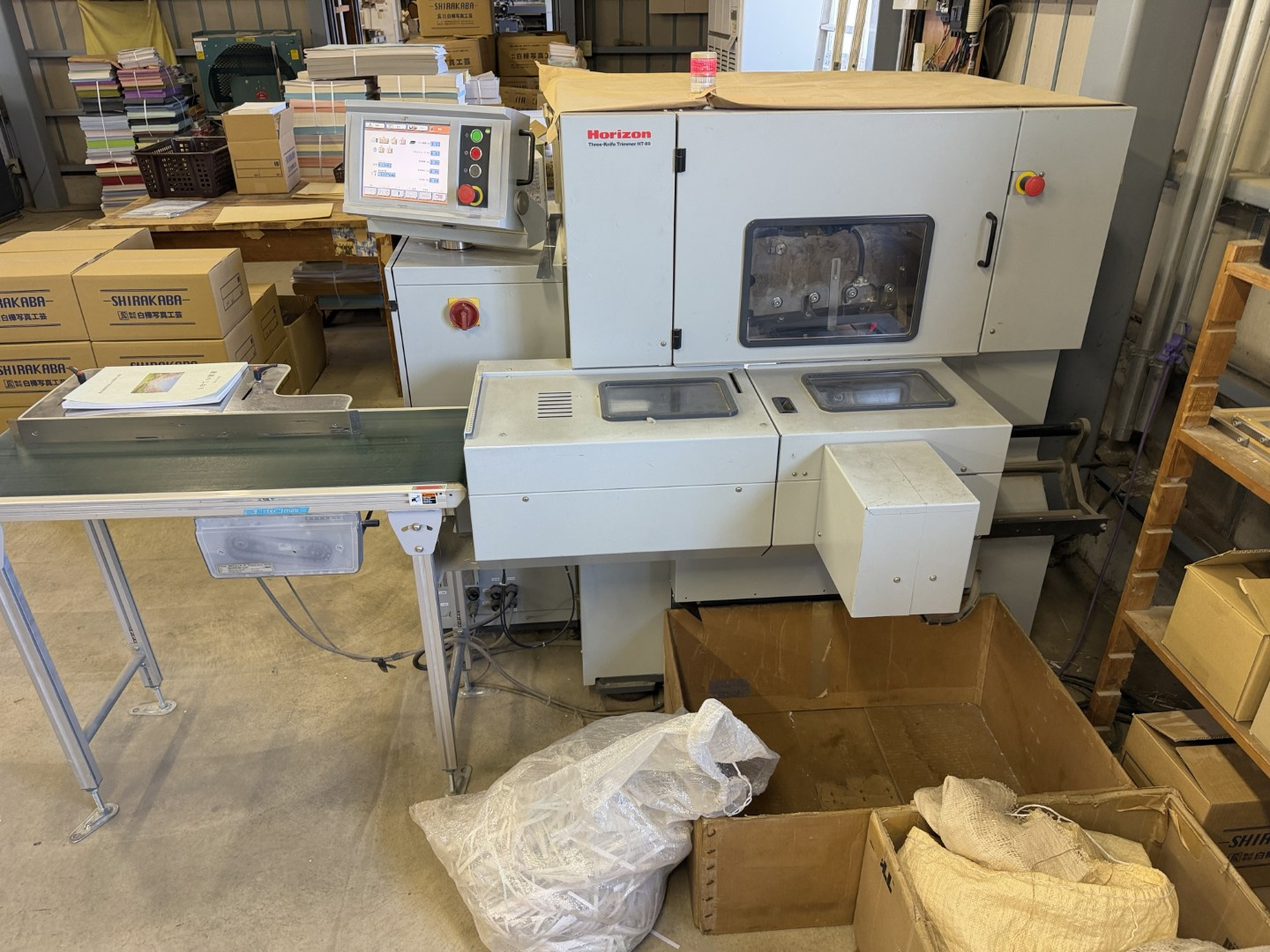

Technical Specifications

• Untrimmed Book Size (Spine x Fore-edge): Max 330 x 330 mm (13” x 13”) | Min 145 x 105 mm (5.71” x 4.135”)
  Finished Book Size (Spine x Fore-edge): Max 300 x 300 mm (11.81” x 11.81”) | Min 139 x 99 mm (5.47” x 3.9”)
  Trim Thickness / Height: 1 to 51 mm (0.04” to 2”)
  Trim Width: Top-bottom and Fore-edge up to 30 mm (1.18”)
  Production Speed: 400 to 1,000 cycles per hour
  Power Consumption: 3-Phase 200 to 220 V, 50/60 Hz (1.5 kW to 2.2 kW depending on connected accessories)

• Air Requirements: Compressed air is required (0.55 to 0.95 MPa pressure, 160+ Liters/min discharge).

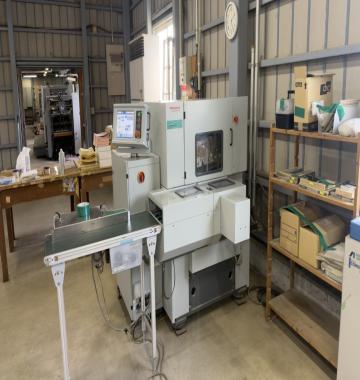

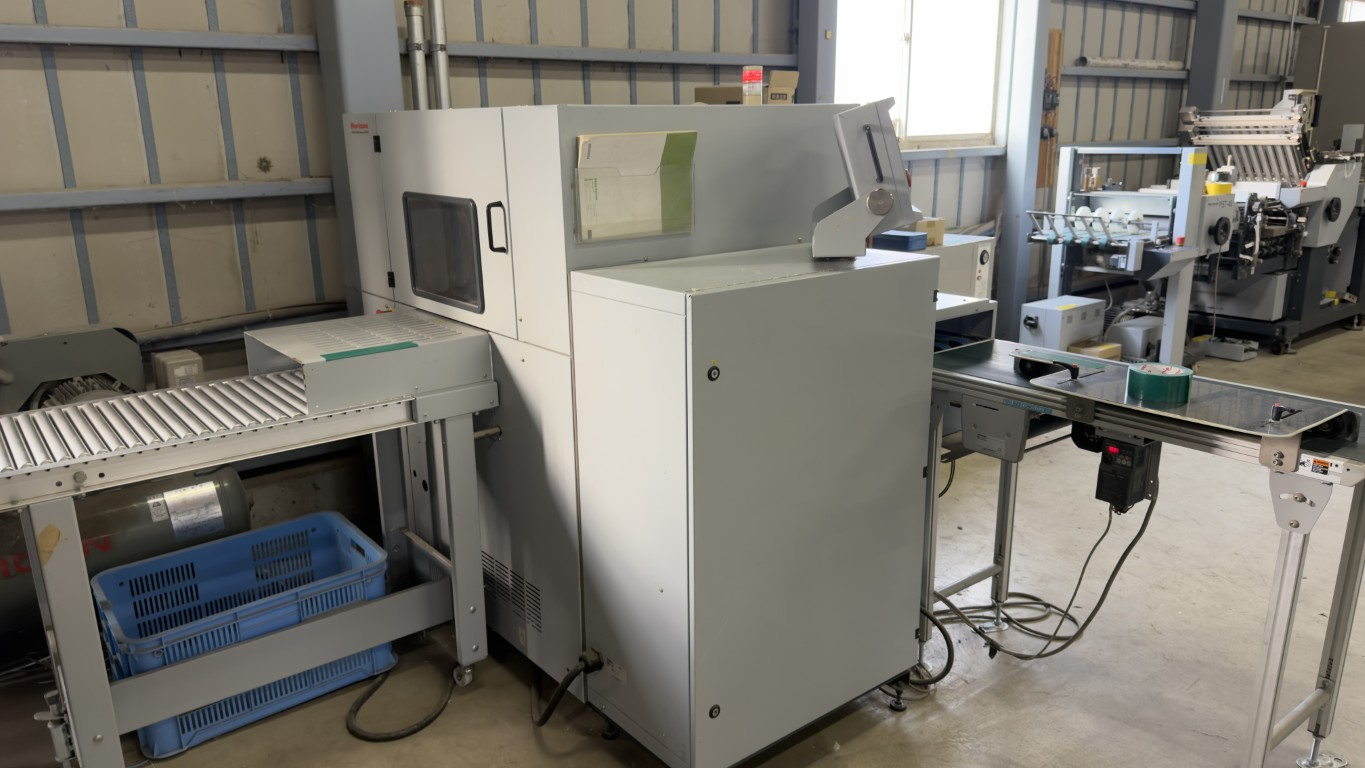

  Machine Dimensions: 1,610 mm (W) x 2,610 mm (D) x 1,515 mm (H)

Key Operational Mechanics

• Drive & Registration: Precision stepper motors and a dedicated servo-motor controlled jogging mechanism ensure highly accurate positioning and book registration.
  Print & Finishing Solutions

• Clamping Section: A servo-motor-driven pressing mechanism applies up to 10kN of pressure to secure the block without marking the cover.
  www.horizon.co.jp

• Trimming Mechanism: It utilizes a swing knife movement for sharp, clean trims. Strong air nozzles blow away trimmings, and an optional chip extractor can be added to manage waste. An optional silicon spray unit is also available to keep the knives clean during heavy production.
  pressXchange+ 1

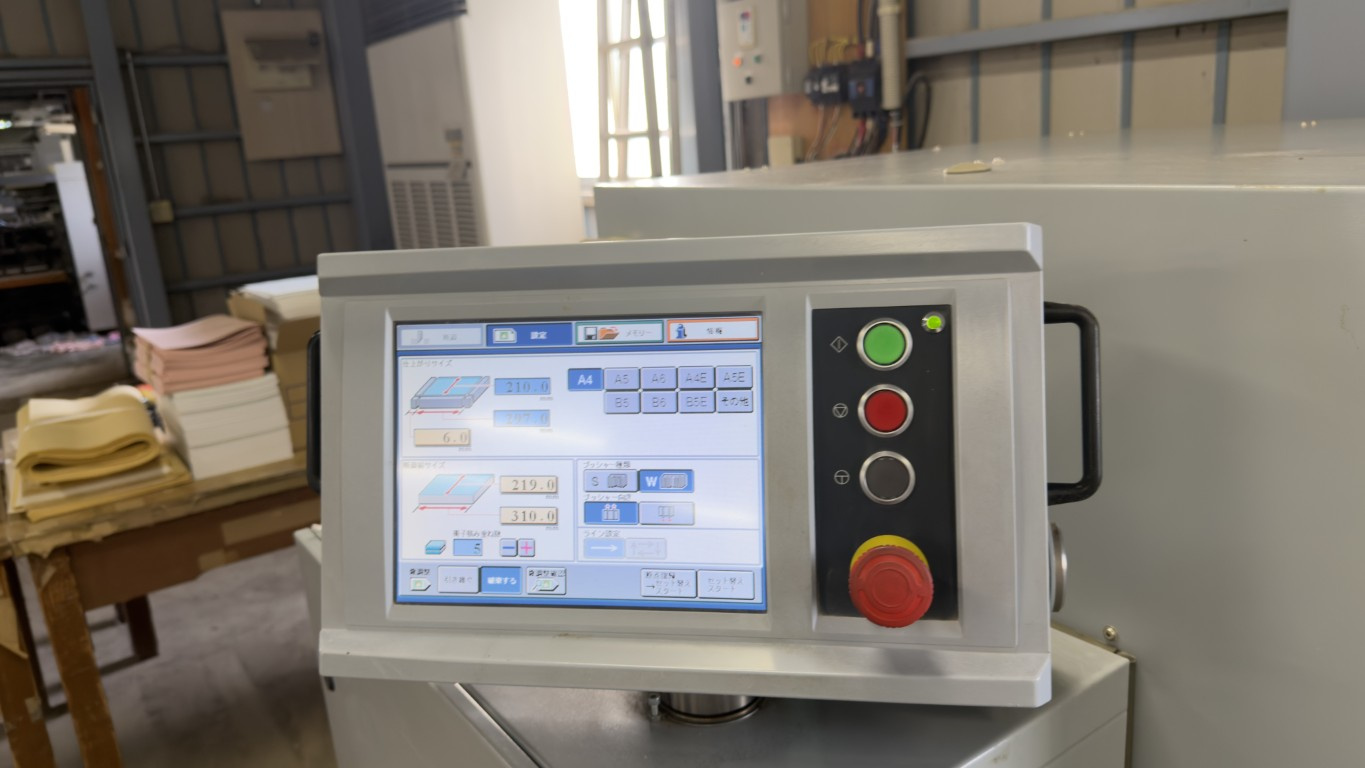

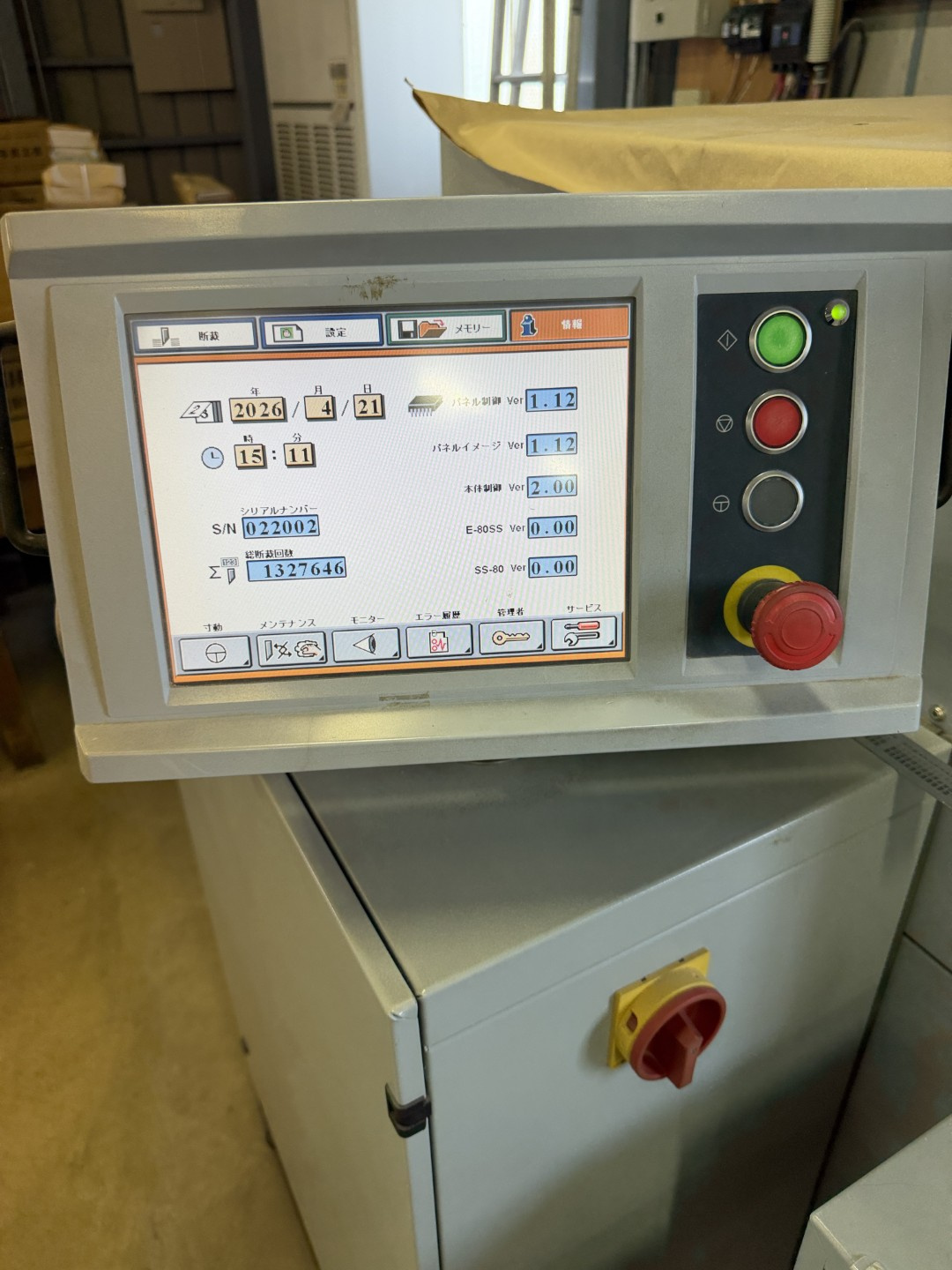

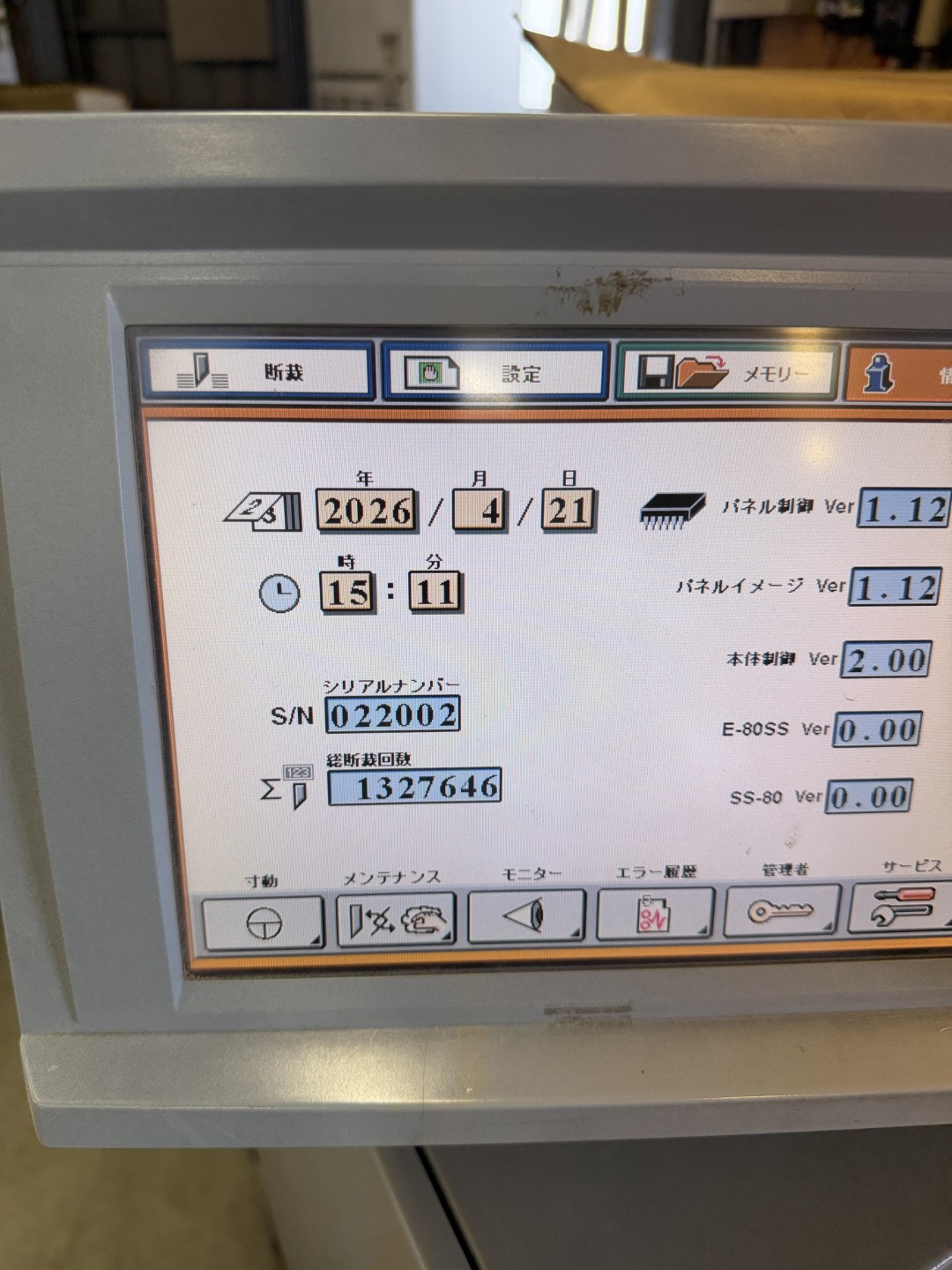

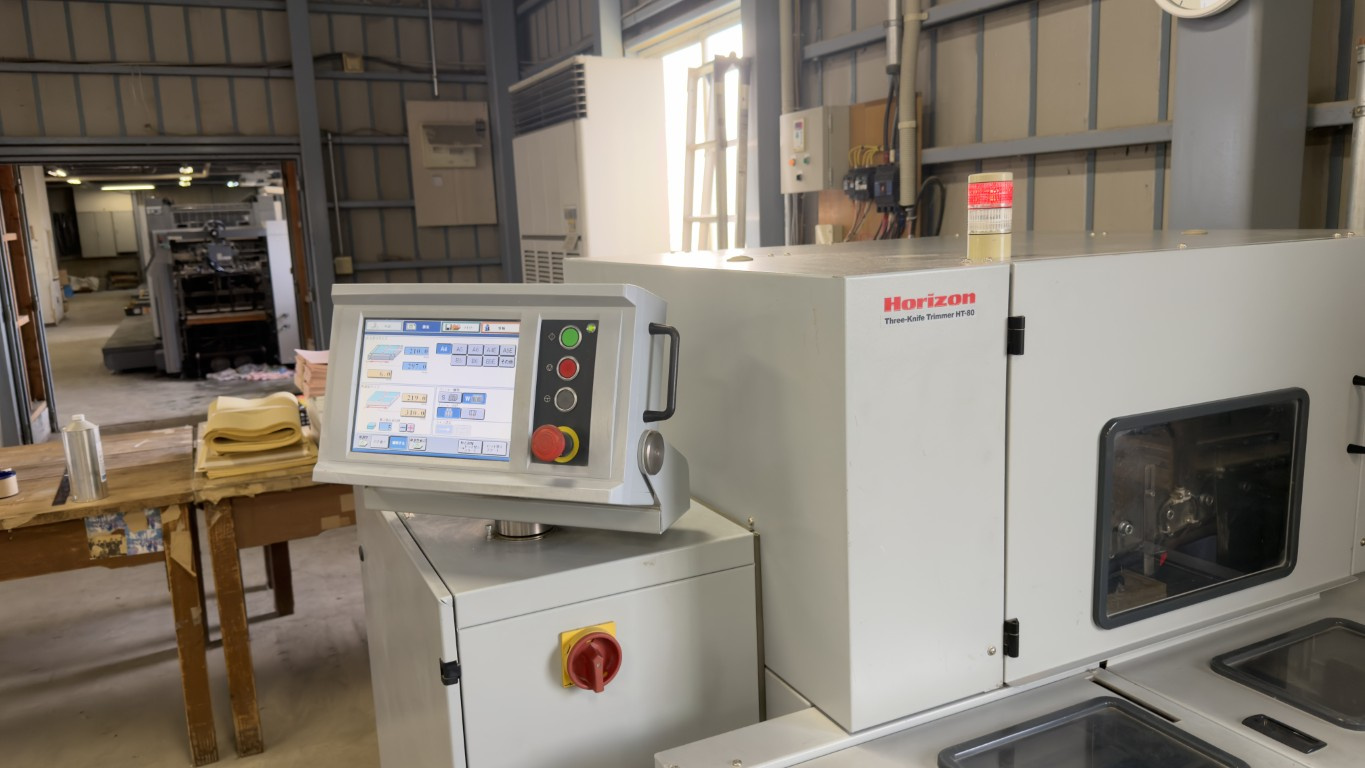

• Console: Setup and changeovers are managed via a 10.4” color touchscreen, where up to 200 jobs can be saved to memory.
