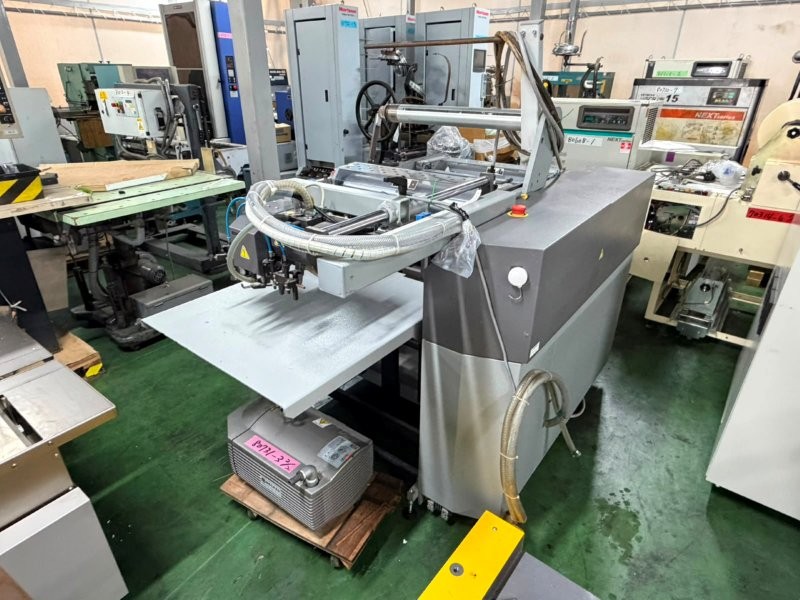

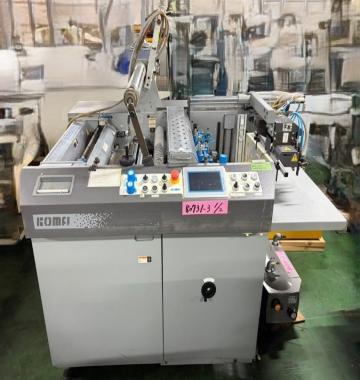

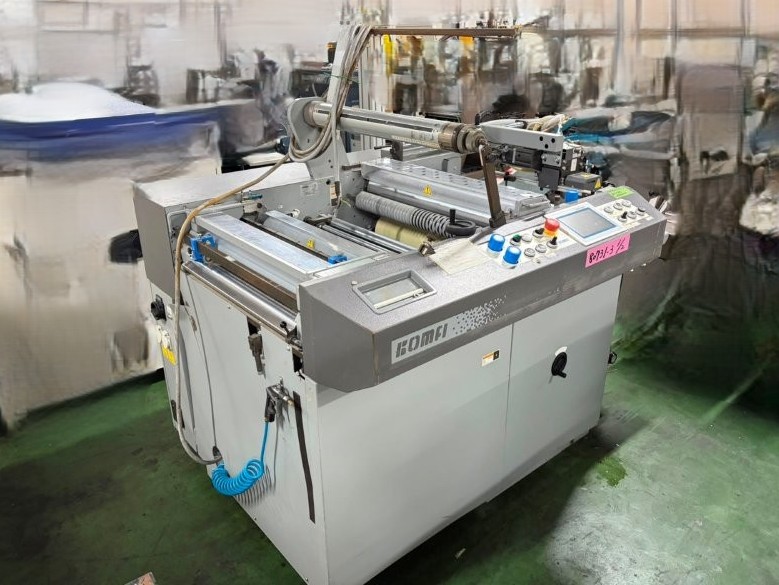

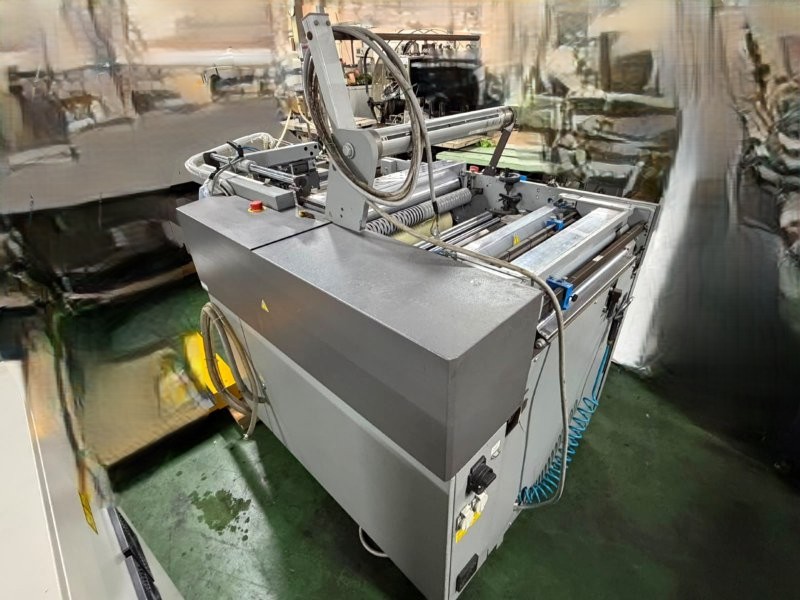

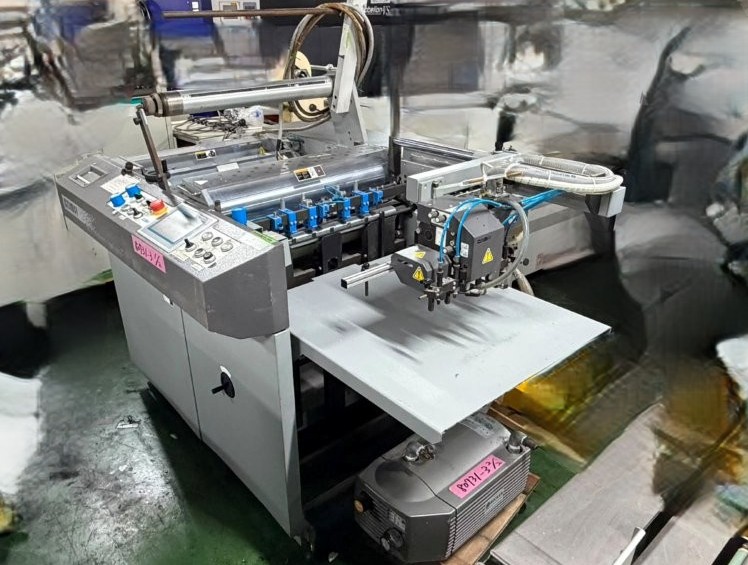

The Komfi Delta 52 is a high-precision, professional-grade thermal laminator (automatic single-sided laminator) manufactured by the Czech company KOMFI, capable of handling sheet sizes up to B2.


Features and Functions
・High Level of Automation: Electronically controls sheet overlap for stability and prevents loading errors during automatic operation.
・Robust Design: Built to heavy-duty specifications, capable of withstanding the rigors of 24-hour continuous operation.

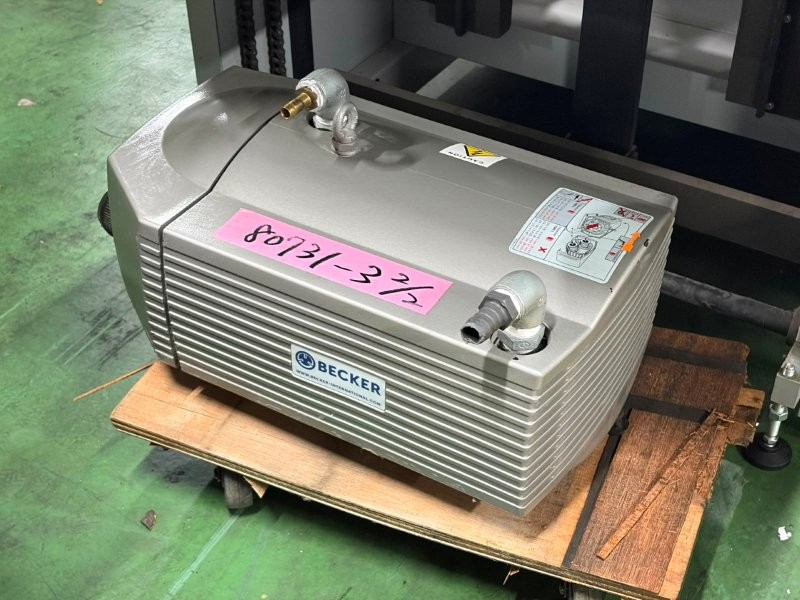

・Key Components: Equipped with a vacuum pump, automatic temperature and pressure control systems, an air shaft for easy film changes, a built-in perforator (for automatic sheet separation), an anti-curl device, and more.

Specifications:
Max. sheet size, cm: 52 × 76
Min. sheet size, cm: 20 × 20
Max. stack height, cm: 63.5
Max. lamination speed, m/min: 35
Max. unit load: suitable for three-shift operation
Paper weight, g/m2: 115-600
Laminating film thickness, µm: 24-50
Laminating film type: nylon, polypropylene, polyester
Laminating roller heating time, min. (25÷100°C): approx. 3.5
Max. recommended lamination temperature: 135°C
Sheet overlap accuracy: ±2 mm (at constant lamination speed)

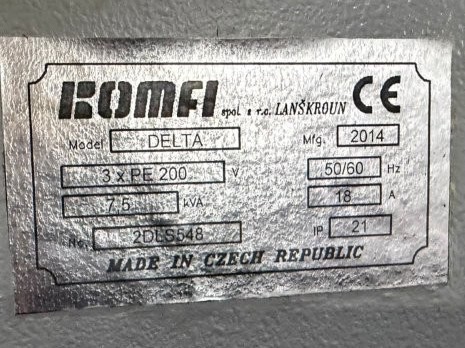

Manufacturer :  KOMFI
Model :  DELTA
Year :  2014
Serial no :   2DLS548

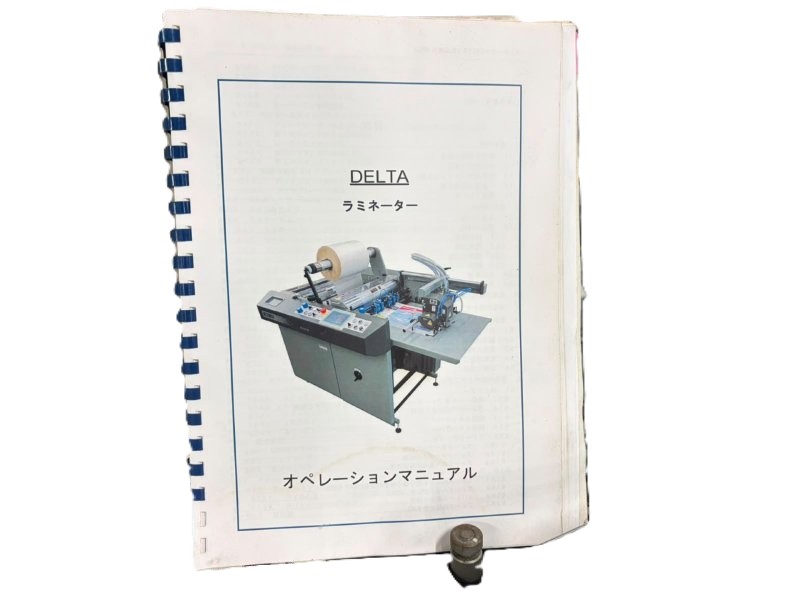

INSTRUCTION MANUAL        : Y
ELECTRICAL CIRCUIT DIAGRAM    : N
PARTS LIST                  : N
