KOMORI SYSTEM-35 (LR-435/546S)
| No. | Section | Description / Model | Quantity |

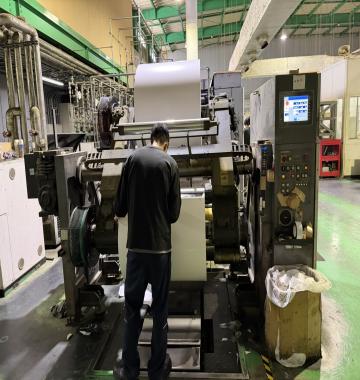

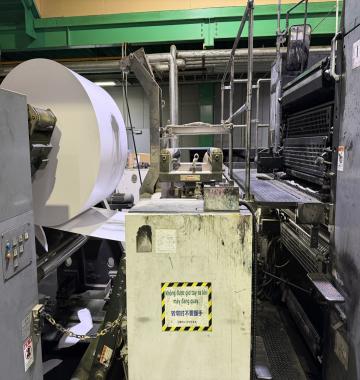

| 1) | Paper Feed Section | 2-arm flying paster (FP-35/4015) | 1 unit 1 unit |
| 2) | Infeed Section | IF-35/546 III | 1 unit |
| 3) | Printing Section | B-B type single-diameter blanket cylinder (LR-35/546S) | 4 units |
| 4) | Drying Section | Full hot-air drying & deodorizing device (Osaka Sanso Kogyo) 2-zone type (CDX214N) |
1 unit |
| 5) | Cooling Section | 3-roller type (CS-35/546S-3) | 1 unit |
| 6) | Web Pass Section | WFT-35/546 II | 1 unit |

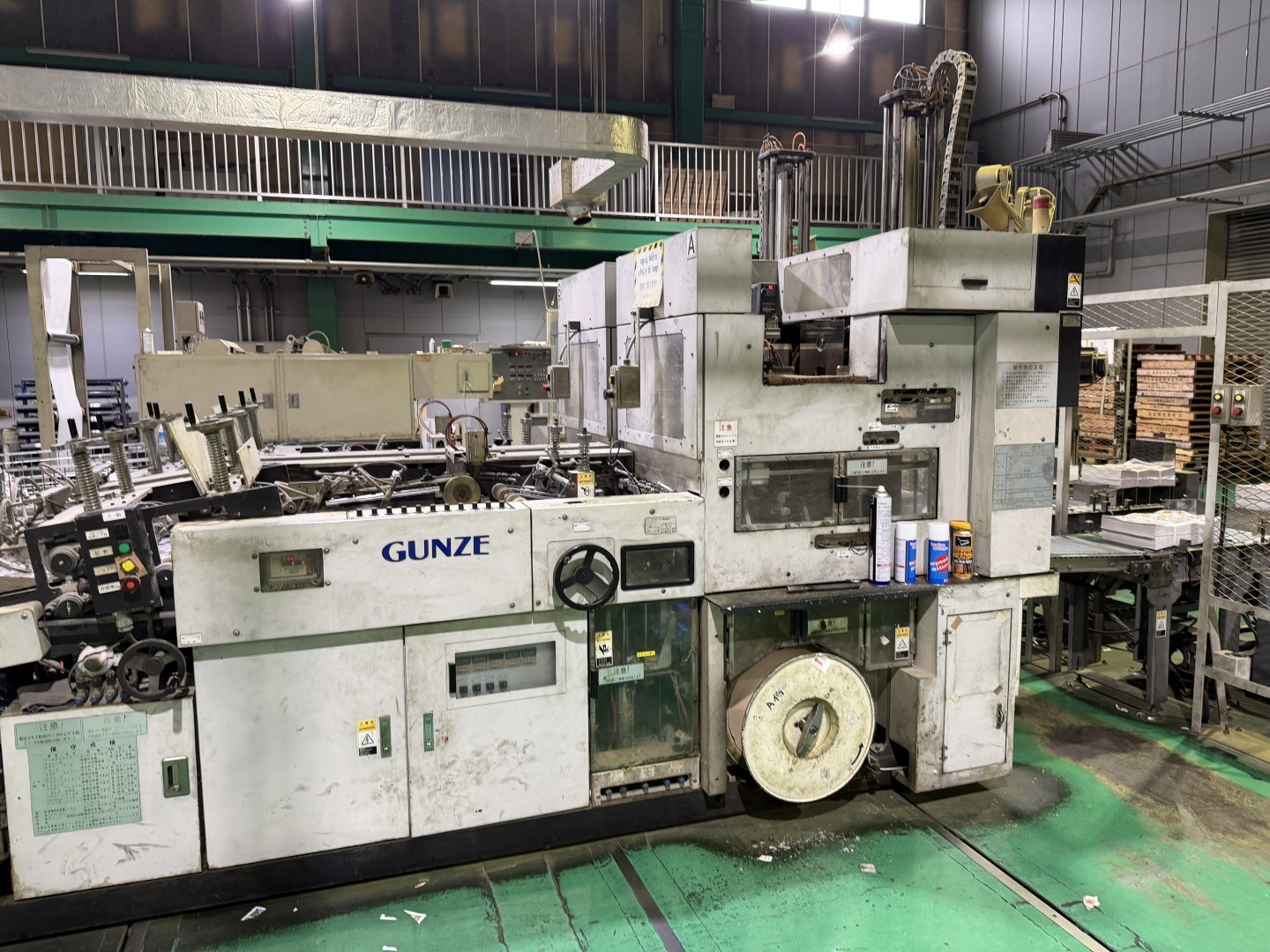

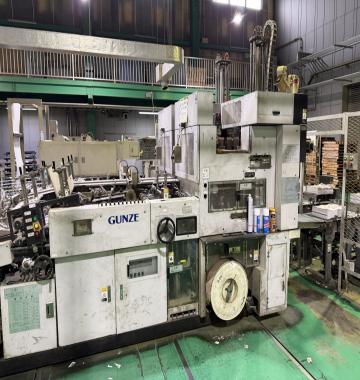

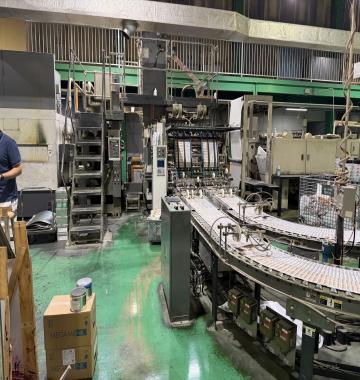

| 7) | Folder Section | Double-circumference combination folder (CFT-35/546 III) *Chopper folding device *B4 x 2P 2-row delivery sheeter |
1 unit |
| 8) | Main Console | 1 unit | |
| 9) | PQC Console | Integrated front/back type | 1 unit |

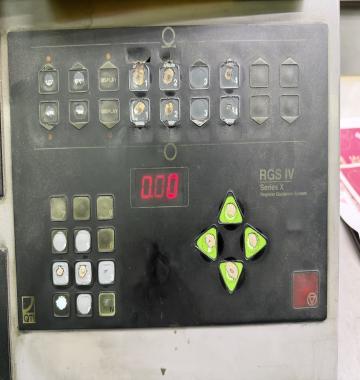

| 10) | Plate Register Console | 1 unit | |
| 11) | Main Motor & Control Panel | 1 set | |

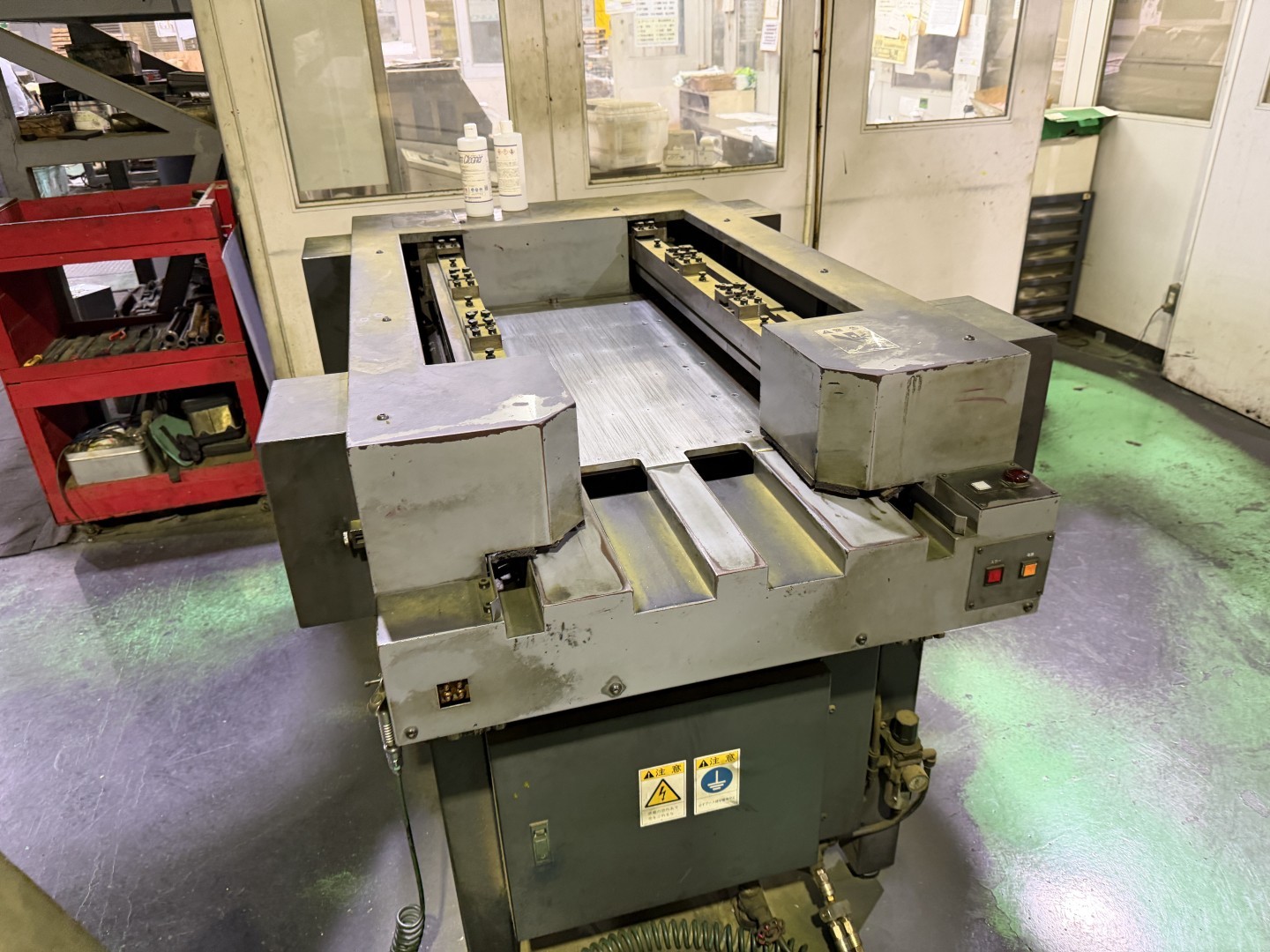

| 12) | Plate Bender | 1 unit | |
| 13) | Dampening Water Cooling/Circulator | Manufactured by Baldwin Japan (M-3000) | 1 unit |
| 14) | Spare Parts | 1 set | |
| 15) | Accessories | 1 set |
| Specification Item | Details |
| 1. Maximum Web Roll | Width 880 mm × Diameter ϕ1016 mm; Mass 850 kg |
| 2. Web Width | 625 to 880 mm (Standard: 625, 765, 788, 813, 880) |
| ※760 to 880 mm for B4 Sheets (Standard: 765, 813, 880) | |
| 3. Printing Paper | Paper Quality: Printing Paper A, B, C, D; Micro-coated printing paper; Art paper; Coated paper; Lightweight coated paper |
| Basis Weight: 40 to 130 g/m2 | |
| 4. Plate Cylinder Reference Circumference (Cut Off) | 546 mm |
| 5. Maximum Printing Speed | 36,000 copies per hour (For B4 size 8-pages (B5 size 16-pages currently doing with offline folding machine, which is not available in this package) |
| (Plate Cylinder: 600 rpm) | |
| 6. Machine Rotation Speed | Inching: Plate Cylinder: 8 rpm |
| Low Speed: Plate Cylinder: 40 rpm | |
| Maximum: Plate Cylinder: 700 rpm (B4 fold, ※B5 fold) | |
| Plate Cylinder: 600 rpm (※B4 sheet) | |
| 7. Maximum Printing Area | 880 mm × 536 mm |
| 8. Non-Printing Length | 10 mm |
