NAGAI NCW-102HHD5（102Cm）
The NAGAI NCW-102HHD5 is a high-performance, large-format paper cutter manufactured by Nagai Machine (Japan) for the printing and bookbinding industries.
Key Features
"NCW" (Dual-Pull) Series: The "NCW" designation refers to a dual-pull mechanism that drives the knife (blade) by pulling it from both the left and right sides. This ensures an even distribution of load on the blade, allowing for beautiful, highly precise cuts without distortion, even when processing thick stacks of paper.
Ease of Use: Its mobile design allows for easy relocation, while ensuring stable operation.
Superior Durability and Clamping Pressure
Equipped with a powerful hydraulic clamping system capable of exerting up to 4,000 kg of pressure, it firmly secures large stacks of paper to prevent shifting during cutting.
Specifications: Dimensions (mm) / Weight (kg)
Max. Cutting Width: 1,020 mm
Max. Cutting Length: 1,020 mm
Max. Cutting Thickness: 155 mm
Machine Width (Overall): 2,520 mm
Machine Length (Overall): 2,265 mm
Machine Height: 1,560 mm
Table Height: 850 mm
Front Table Length: 635 mm
Rear Table Length: 1,290 mm
Side Table Dimensions: 560 mm (Length) × 750 mm (Width)
Knife Length (Blade Length): 1,250 mm
Max. Clamping Pressure: 4,000 kg
Manufacturer : NICHIRO (AKEBONO)
Model : NK-700
Year : 2002
Serial no : 0710694
INSTRUCTION MANUAL : Y
ELECTRICAL CIRCUIT DIAGRAM : N
PARTS LIST : N

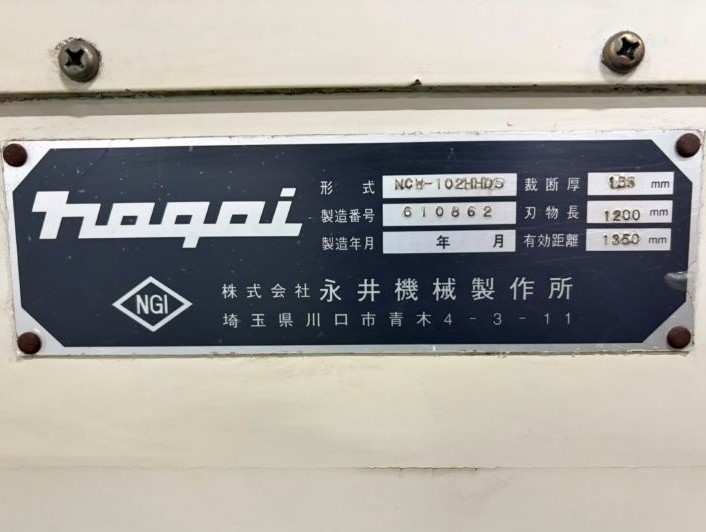

Manufacturer : NAGAI
Model : NCW-102HHD5 (102cm)
Year :
Serial no : 618862

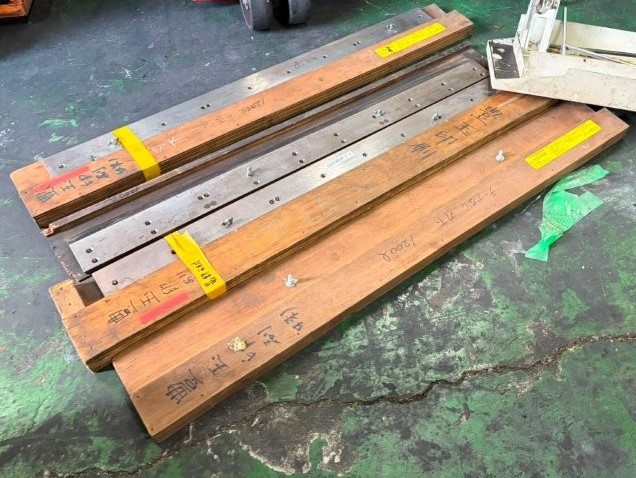

SPARE KNIFE : 3
INSTRUCTION MANUAL : N
ELECTRICAL CIRCUIT DIAGRAM : N
PARTS LIST : N
Key Features
"NCW" (Dual-Pull) Series: The "NCW" designation refers to a dual-pull mechanism that drives the knife (blade) by pulling it from both the left and right sides. This ensures an even distribution of load on the blade, allowing for beautiful, highly precise cuts without distortion, even when processing thick stacks of paper.
Ease of Use: Its mobile design allows for easy relocation, while ensuring stable operation.
Superior Durability and Clamping Pressure
Equipped with a powerful hydraulic clamping system capable of exerting up to 4,000 kg of pressure, it firmly secures large stacks of paper to prevent shifting during cutting.
Specifications: Dimensions (mm) / Weight (kg)
Max. Cutting Width: 1,020 mm
Max. Cutting Length: 1,020 mm
Max. Cutting Thickness: 155 mm
Machine Width (Overall): 2,520 mm
Machine Length (Overall): 2,265 mm
Machine Height: 1,560 mm
Table Height: 850 mm
Front Table Length: 635 mm
Rear Table Length: 1,290 mm
Side Table Dimensions: 560 mm (Length) × 750 mm (Width)
Knife Length (Blade Length): 1,250 mm
Max. Clamping Pressure: 4,000 kg
Manufacturer : NICHIRO (AKEBONO)
Model : NK-700
Year : 2002
Serial no : 0710694
INSTRUCTION MANUAL : Y
ELECTRICAL CIRCUIT DIAGRAM : N
PARTS LIST : N
Manufacturer : NAGAI
Model : NCW-102HHD5 (102cm)
Year :
Serial no : 618862
SPARE KNIFE : 3
INSTRUCTION MANUAL : N
ELECTRICAL CIRCUIT DIAGRAM : N
PARTS LIST : N
New Until
In Stock
