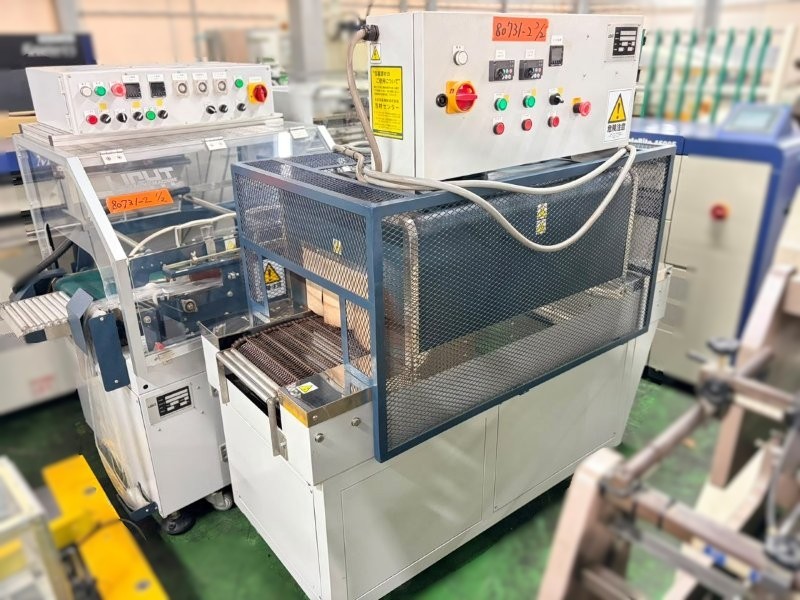

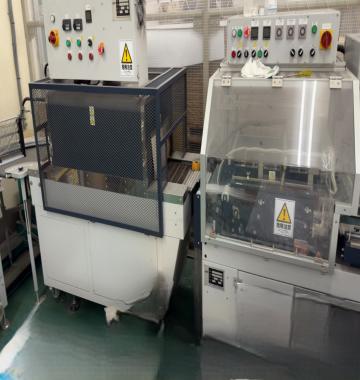

he combination of Nihon Hoso Kikai’s "LSA-504G" (fully automatic L-bar shrink wrapper) and the "DS-400" shrink tunnel forms an efficient system for automated packaging lines, enabling automatic packaging simply by placing products onto the conveyor.

Features and Benefits
・Automatic Packaging: Automatically performs L-bar sealing and packaging simply by placing the product on the conveyor.
・Line Integration: Can be connected to upstream production lines to establish a seamless automated packaging line.
・Shrink Tunnel (DS-400) Integration: Using the units together ensures a neat, secure shrink-wrapped finish.
・Ease of Operation: Designed for simple operation and easy film replacement.

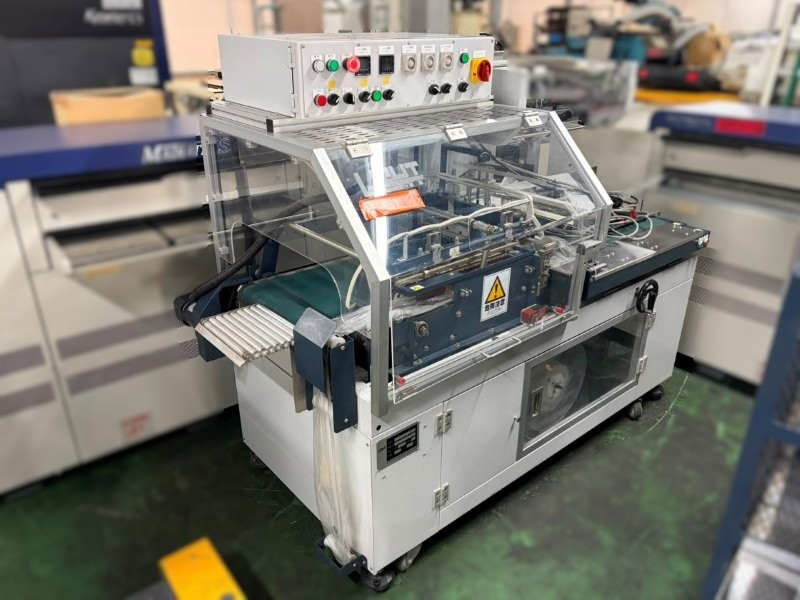

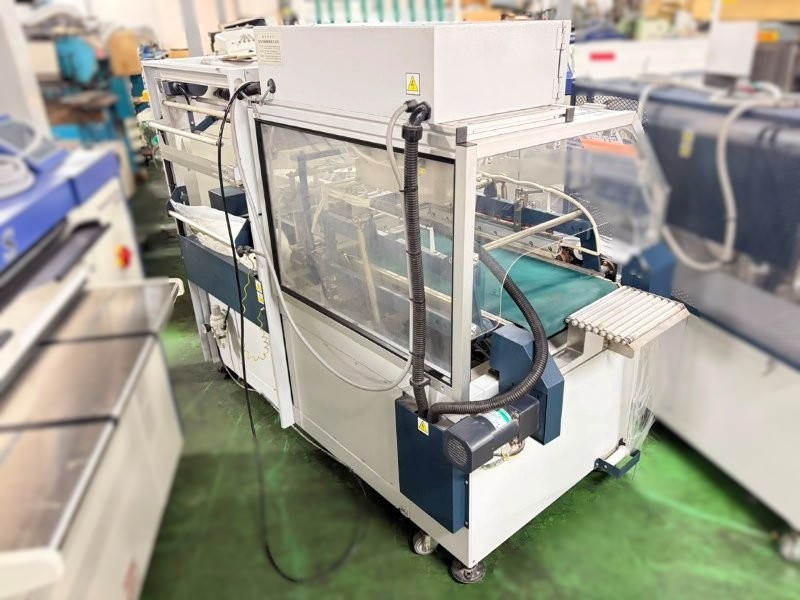

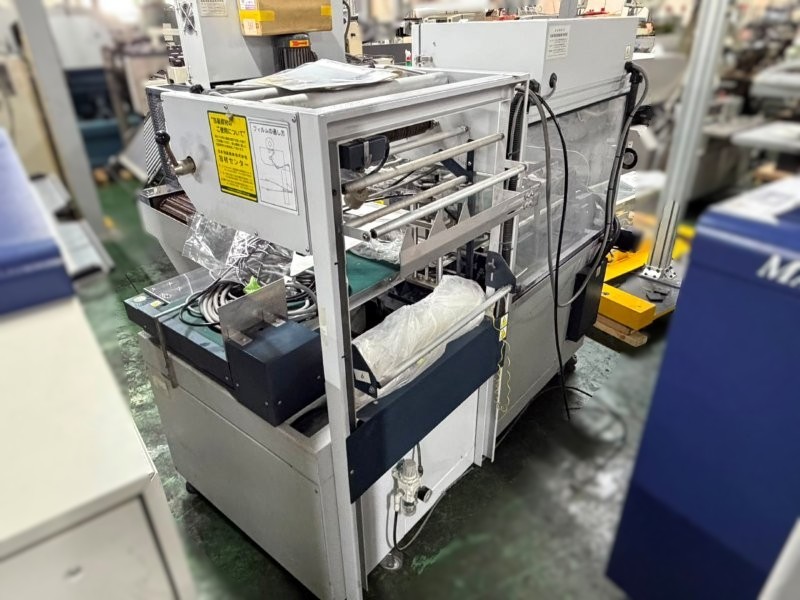

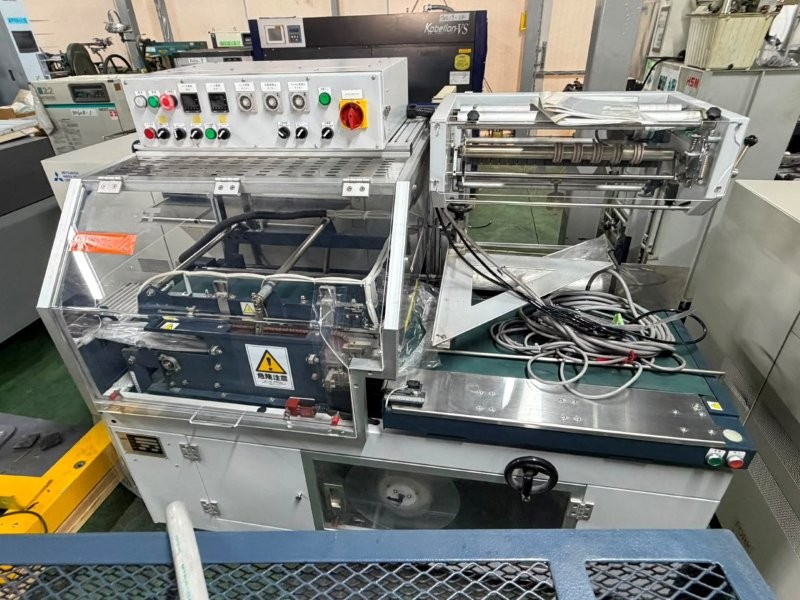

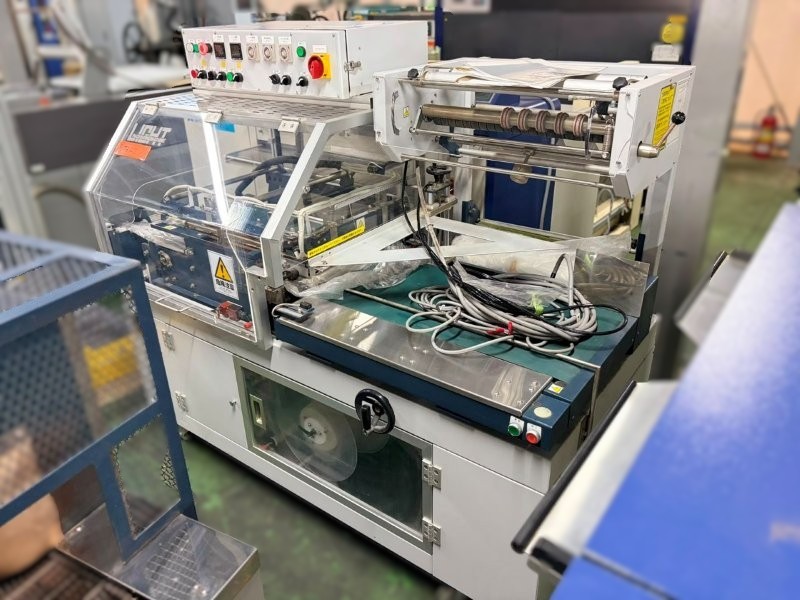

The "LSA-504G" (LSA-504 series) is a fully automatic L-bar shrink wrapper that performs packaging automatically simply by placing products on the conveyor.
Features
・Automatic Packaging: Automatically carries out the packaging process once the product is placed on the conveyor.
・High Throughput: Ideal for applications where smaller shrink wrappers lack sufficient capacity; capable of packaging up to approximately 25 packs per minute (depending on the product).
・Easy Line Integration: Can be connected to upstream lines to create a smooth, automated packaging workflow.
・Excellent Usability: Designed for very simple operation and easy film replacement.
・System Integration: Can be paired with a separately sold shrink tunnel (such as the DS-400 series) for more effective shrink packaging results. Basic Specifications
Machine Dimensions: Length 1,650 mm × Width 835 mm × Height 1,370 mm
Machine Weight: Approx. 280 kg
Seal Dimensions: Length 550 mm × Width 450 mm
Max. Sealing Height: 100 mm
Conveyor Height: 790 mm (adjustable +80 mm)
Power Supply: Single-phase 200 V / Approx. 1.3 kW
Air Pressure: 0.5 MPa
Air Consumption: 80 L (Normal)/min
Packaging Capacity: Max. 25 packs/minute (*varies depending on product size and shape)

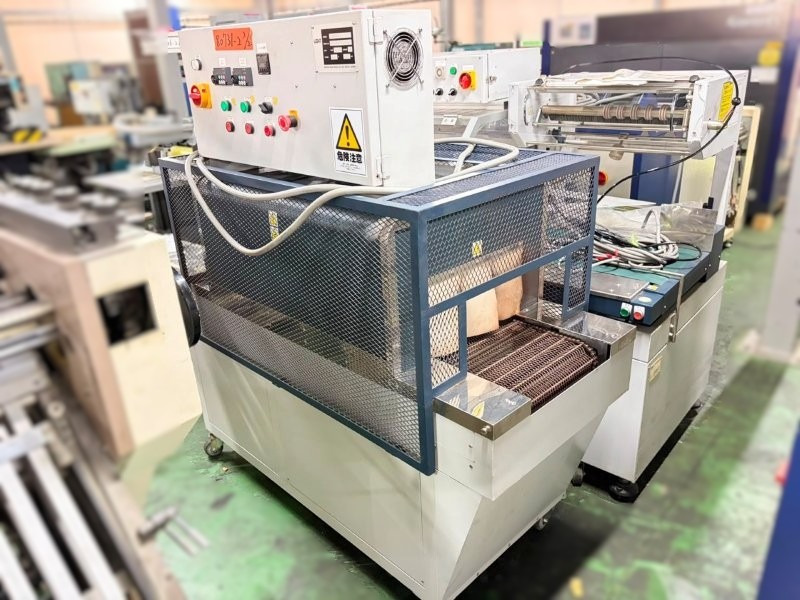

The "DS-400" is a shrink tunnel (heat-shrink oven) used for shrink packaging.
It is suitable for integration into an automated packaging line following a fully automatic L-bar shrink wrapper (such as the LSA-504).
Specifications
Machine Dimensions: Width 600 × Depth 1,500 × Height 1,400 mm
Tunnel Interior Dimensions: Width 400 × Depth 900 × Height 200 mm
Tunnel Temperature: Room temperature to 200°C
Heater Capacity: 6.0 kW (3-phase 200 V)

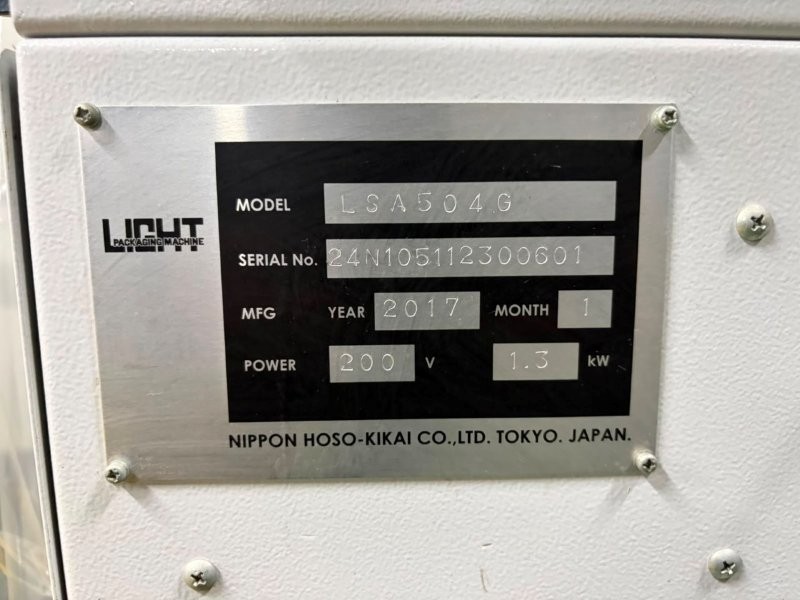

Manufacturer :  LIGHT
Model :  LSA504G
Year :  2017
Serial no :   24N105112300601

INSTRUCTION MANUAL        : Y
ELECTRICAL CIRCUIT DIAGRAM    : N
PARTS LIST                  : N
