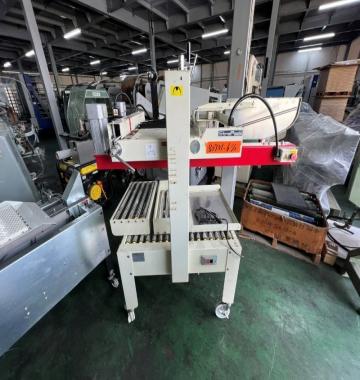

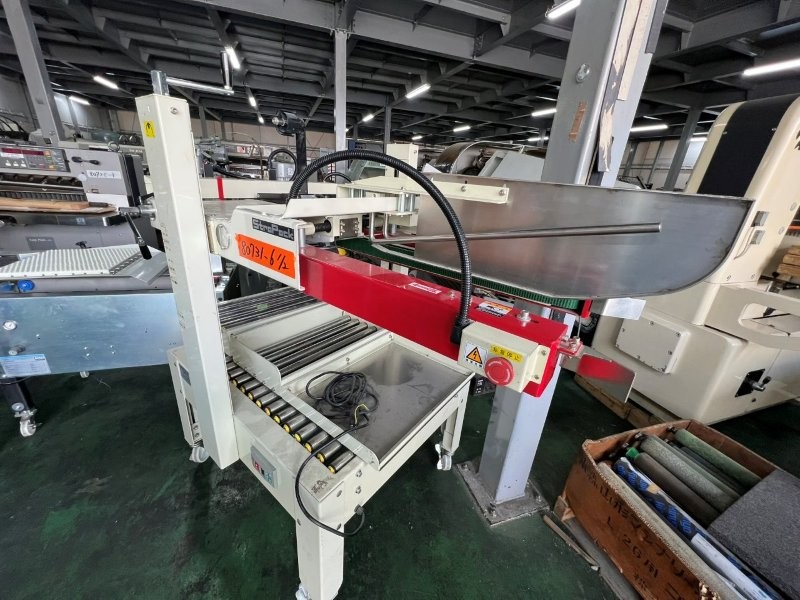

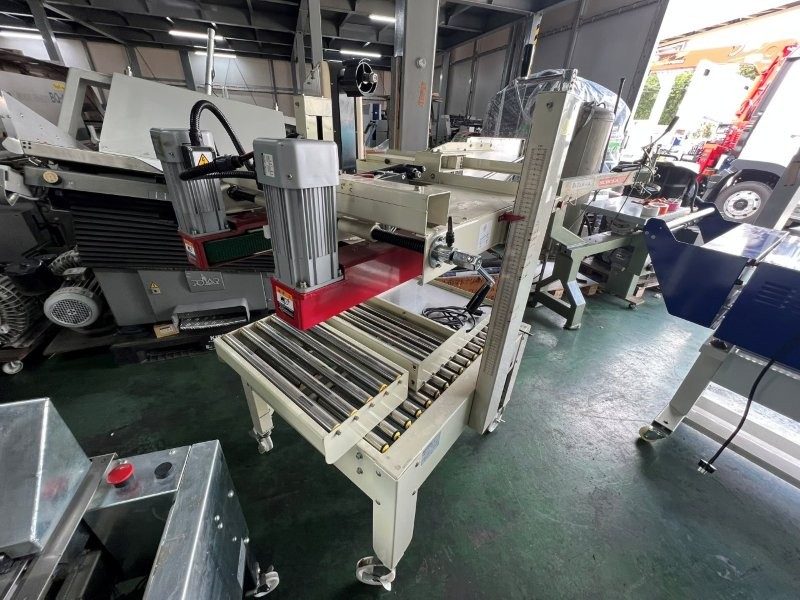

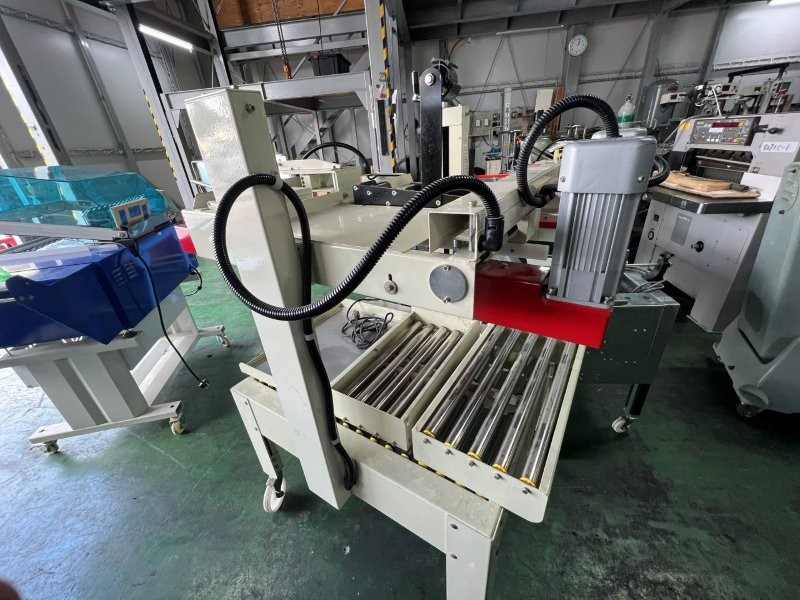

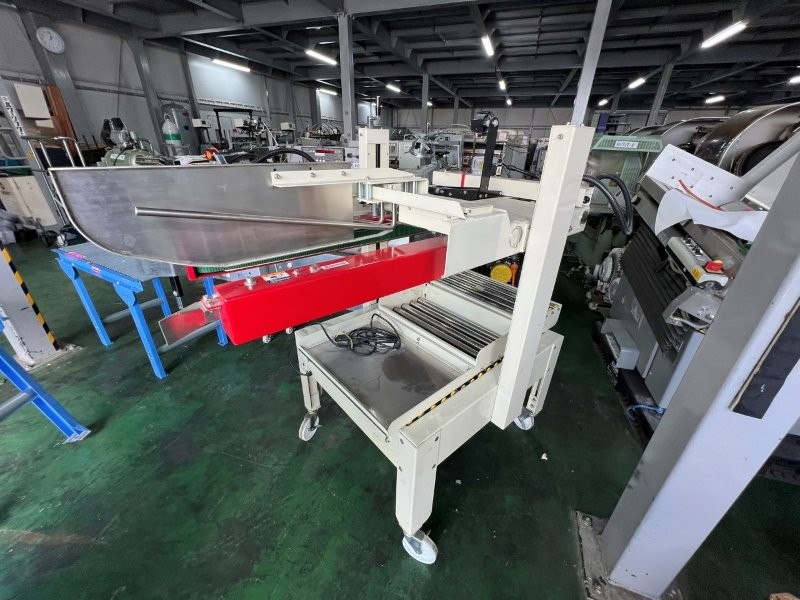

STRAPACK AS-323 Simple-type case sealer with 3-flap folding mechanism
Manufacturer : STRAPACK
Model : AS-323
Year :
Serial no : 2821-17
INSTRUCTION MANUAL : N
ELECTRICAL CIRCUIT DIAGRAM : N
PARTS LIST : N
Specifications
Model: AS-323
Case Dimensions
Machine Dimensions
Overall Width: 870 mm
Overall Length: 1,910 mm
Overall Height: 1,535 mm
Weight: Approx. 180 kg
Width: 160–450 mm
Height: 100–620 mm
Length: 150–600 mm
Tape Width
Tape Overlap: 50 mm
Table Height: 600–750 mm
Processing Capacity: 15–20 cases/min *Varies depending on case size
Power Supply: Single-phase 100 V, 50/60 Hz, 0.18 kW
Model : AS-323
Year :
Serial no : 2821-17
INSTRUCTION MANUAL : N
ELECTRICAL CIRCUIT DIAGRAM : N
PARTS LIST : N
Specifications
Model: AS-323
Case Dimensions
Machine Dimensions
Overall Width: 870 mm
Overall Length: 1,910 mm
Overall Height: 1,535 mm
Weight: Approx. 180 kg
Width: 160–450 mm
Height: 100–620 mm
Length: 150–600 mm
Tape Width
Tape Overlap: 50 mm
Table Height: 600–750 mm
Processing Capacity: 15–20 cases/min *Varies depending on case size
Power Supply: Single-phase 100 V, 50/60 Hz, 0.18 kW
